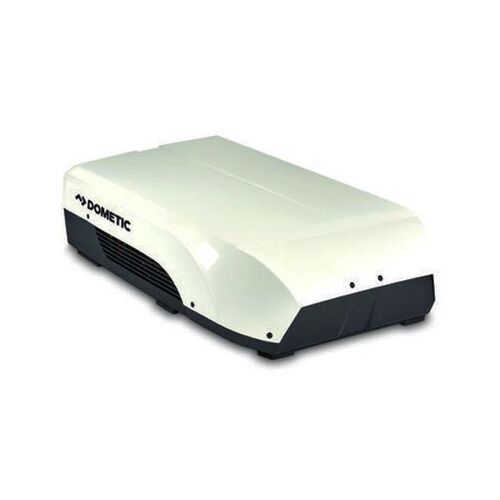

DOMETIC HARRIER INVERTER ROOF TOP AIR CONDITIONER

Description

The new Dometic Harrier Inverter raises the bar in efficient and powerful RV rooftop air conditioners.

Featuring the first use of an Inverter compressor in an RV application, the dometic Harrier Inverter can help eliminate start-up current issues when running from generators or when current supply is restricted. The Dometic Harrier Inverter has a variable speed compressor that is extremely quiet, even when running at maximum speed and has a powerful 3.1kW cooling capacity (tested to ISO5151) making it the most powerful in its class. The compressor in the Dometic Harrier Inverter slows down or speeds up in order to maintain the output as needed and in turn reduces energy comsumption to the minimum required as well as noise and vibration. In addition to its efficiency, the new Dometic Harrier Inverter also has a number of useful comfort features including remote controlled oscillating vents and cold plasma air purification. The innovative sleep mode function also reduces the compressor speed, in addition to the usual fan speeds, to further reduce the noise and vibration levels while sleeping.

In another unique feature, the Dometic Harrier Inverter is suitable to fit to 360?360mm and 400?400mm roof openings straight out of the box without the need for additional components or accessories.

Quality Features:

Highly efficient inverter technology
Timer function and sleep mode
Oscillating outlet doors
Cold plasma air purification
Fitment to both 360 and 400 roof opening sizes possible
Low start-up current
Extremely quiet operation both inside and outside the RV
Best for Vehicle Length

Up to 7 m

Electrical Rating

230 V

Nominal Compressor Capacity

3.7 kW

Cooling Capacity

3.1 kW

Heating Capacity

2.8 kW

Cooling Current Draw

6.5 A

Heating Current Draw

5.2 A

Operating Temperature Range

-2?C – +52?C

Airflow

649m2/h

External Dimensions (W x H x D)

750 mm x 280 mm x 1070 mm

Internal Dimensions (W x H x D)

500 mm x 66 mm x 520 mm

Roof Opening (W x D)

360 mm x 360 mm / 400 mm x 400 mm

Roof Thickness

30 mm ? 60 mm

Weight

45 kg

Number of Blower Speeds

3

Remote Control

Yes

Part Number

100-02300
