There are two pieces that connect your van to your tow vehicle: the coupling on your A-frame and the ball mount on your car. Get both right and your van tows level, locks on securely, and handles whatever the road throws at it. This guide covers what to buy in 2026 and, just as importantly, how to make the two ends work together.
Coupling vs Ball Mount: Two Jobs, Two Ends Of The Rig
Before you spend a cent, get this straight, because it trips up a lot of first-timers and most of the “best hitch” lists online lump it all together. Your hitch set up is actually two separate pieces doing two different jobs at two different ends of your rig.
The coupling bolts to your caravan’s A-frame. It’s the bit that drops onto the tow ball or pin and locks your van to the car. This is the safety-critical connection, and on rough roads it’s also what lets the van and the car move independently so you don’t crack a chassis on a washout. Standard ball couplings, off-road ball couplings and pin-style couplings like the DO35 all live at this end.
The ball mount (also called a tongue or drop hitch) slides into the receiver on your tow vehicle and holds the tow ball or pin. Its job is height. Get the connection at the right height and your van sits level, which means it tows straight, brakes evenly and wears its tyres flat. Get it wrong and a van that noses up or down will sway, scrub tyres and feel horrible behind you.
The two ends have to talk to each other in one specific way: a ball coupling needs a tow ball on the mount, and a pin coupling like the DO35 needs a matching tow pin. It’s the one compatibility check that links your two choices, and we’ll flag it on every pick below.
Here’s the part people miss: a lifted 4WD towing a DO35-equipped van still needs both, sized correctly. The fancy coupling on the van does nothing about the fact your lift kit has raised the connection 80mm too high. So this guide covers both, in order: coupling first, then ball mount.
Match everything to your van’s ATM. A 50mm tow ball is rated to 3500kg, so anything heavier needs a 70mm ball and matching coupling. Never tow above the lowest-rated component in the chain, whether that’s the coupling, the ball, the ball mount, or the tow bar bolted to your car.
That chain includes the tow bar itself. It needs to be a heavy-duty bar rated comfortably above your van’s ATM and tow ball weight, and fitting a stronger one doesn’t raise what you’re legally allowed to tow. If you’re not sure yours is up to the job, that’s worth sorting before you go heavy.
One thing this guide does not cover is weight distribution. A weight distribution hitch (WDH) is a separate system that shifts load back onto your tow vehicle’s front axle, and it works alongside your coupling and ball mount rather than replacing either. If your van’s heavy on the tow ball, that’s your next read.
What To Look For When Buying
Whether you’re shopping for a coupling, a ball mount, or both, these are the things that actually matter.
- Weight rating: Must exceed your van’s ATM with a bit of headroom. Most vans sit 2.5 to 3.5 tonnes (50mm ball); heavier rigs need 4.5T-rated gear and a 70mm ball.
- On-road or off-road: Blacktop-only? A standard ball coupling is fine. Heading bush? You need an articulating coupling that lets the van twist and pitch independently of the car.
- Articulation: Off-road couplings should offer full rotation plus generous up/down and side/side movement. A locked-up coupling on a rutted track is how chassis and A-frames get bent.
- Ball or pin: A ball coupling pairs with a tow ball on the mount; a pin coupling like the DO35 pairs with a tow pin. Get this match right or the two ends won’t connect.
- ADR compliance and locking: Look for ADR 62/02 compliance and a positive, visible lock. You want to know at a glance that you’re hooked on properly.
- Ease of hitching: Drop-on and automatic designs save the reverse-and-guess dance, which matters a lot if you hitch solo.
- Retrofit compatibility: Most couplings use a standard 4-bolt A-frame pattern, so upgrading from an old ball or poly block is usually a bolt-on job.
- Drop and rise (ball mounts): Measure the gap between your loaded connection height and your van’s coupling height. That number tells you how much drop or rise you need. Lifted utes often need 100mm or more of drop.
Measure your tow ball height with the van loaded and hitched, not empty. A van full of water and gear sits differently, and that’s the height you actually tow at.
Choosing Your Coupling
Couplings come in three broad types. A standard 50mm ball coupling is what most on-road vans roll off the lot with: cheap, simple, and fine for the highway and the odd well-graded dirt road, but it has almost no articulation and isn’t built for serious corrugations. An off-road ball coupling keeps the familiar 50mm ball but adds the articulation a standard coupling lacks. A pin or yoke coupling like the DO35 is the premium option and has become the default fit on serious off-road vans. We’ve flagged the mount each one needs, so you can pair them up correctly.
✔ Pros
- Brilliant off-road articulation
- Checklock visual safety confirmation
- Easy retrofit, standard bolt pattern
- Works on and off road
✗ Cons
- Premium price
- Taller profile than a ball coupling
- Needs a pin-compatible mount
✔ Pros
- Automatic, hands-free hitching
- Low profile clears 4WD doors
- Australian made and supported
- WDH adaptor available
✗ Cons
- Sold direct, not through major retailers
- Premium price
- Some prefer a clearer visual lock
✔ Pros
- Keeps the standard 50mm ball
- Much cheaper than pin couplings
- Easy hitch, no pin alignment
- Fixed and override versions
✗ Cons
- Still a ball coupling at heart
- Less articulation than pin types
- Not for extreme terrain
Heavier Rigs And Other Options
Towing a big tandem-axle van over 3.5 tonnes? Step up to the Cruisemaster DO45 Plus (rated 4500kg) which runs a 70mm ball and the same proven articulation, so your mount needs a matching 70mm DO45 pin. The ARK XO Off-Road Coupling is another solid 3500kg articulating-ball option if you want to keep a 50mm ball with quick-hitch locking, paired with a 50mm tow ball on the mount. And if your big lap never leaves sealed roads, there’s nothing wrong with the standard 50mm ball coupling your van came with (it pairs with a 50mm ball): just don’t kid yourself it’ll handle corrugations.
Choosing Your Ball Mount
This is the end most people forget, and it’s the one that quietly ruins how a van tows. The moment you fit a lift kit, change tow vehicles, or buy a van with a different coupling height, your connection point is at the wrong height. An adjustable ball mount fixes that: pull the pins, slide the head up or down, lock it back in. We run a GEN-Y on our own rig precisely because swapping between setups is so easy. The key thing to check on each one is which couplings it takes (a tow ball for ball couplings, a tow pin for pin couplings like the DO35), which we’ve flagged below.
✔ Pros
- Built and tested for Aussie conditions
- Suits all common couplings
- Generous drop range for lifted rigs
- Trusted brand, easy to find parts
✗ Cons
- Steel, so heavier than alloy options
- Big lifts may need the right drop shank
✔ Pros
- Seriously heavy-duty build
- Takes 50mm, 70mm and pintle
- Easy pin-and-slide adjustment
- Expandable with accessories
✗ Cons
- Needs the Australian Tongue adapter
- Pricier than a basic adjustable mount
- US-spec ratings don’t apply locally
Also Worth A Look
The Black Jack Brutus is a solid-steel 4500kg adjustable mount with up to 325mm of drop, which makes it the pick for seriously lifted utes that need a big height change; it takes a 70mm ball (or the right pin for a DO45). The Mister Hitches HD range offers multi-stage adjustment (up to 24 positions) at strong value and takes a 50mm or 70mm ball, so it’s a good shout if you want plenty of fine-tuning without paying GEN-Y money.
Torque your ball mount bolts to the manufacturer’s spec with a torque wrench, and recheck after your first trip. An under-tightened adjustable mount is a serious safety risk. Also confirm your tow ball or pin rating matches the mount and coupling.
Quick Comparison
Couplings
| Coupling | Price | Rating | Type | Mount Needs |
|---|---|---|---|---|

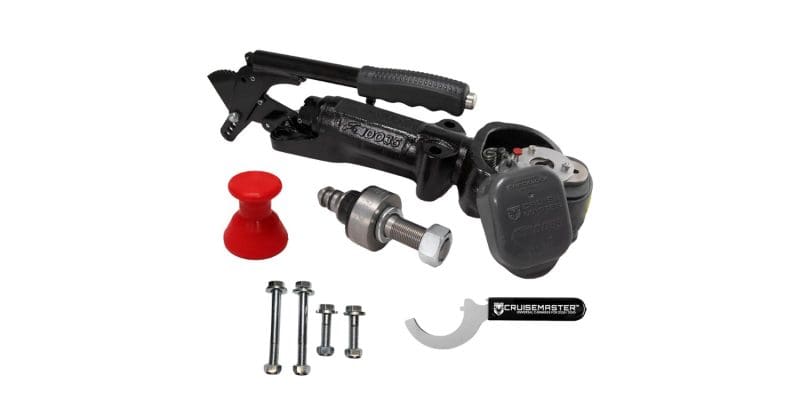

| Cruisemaster DO35 V3 Plus Pick | ~$500–700 | 3500kg | Pin / articulating | 50mm DO35 pin |

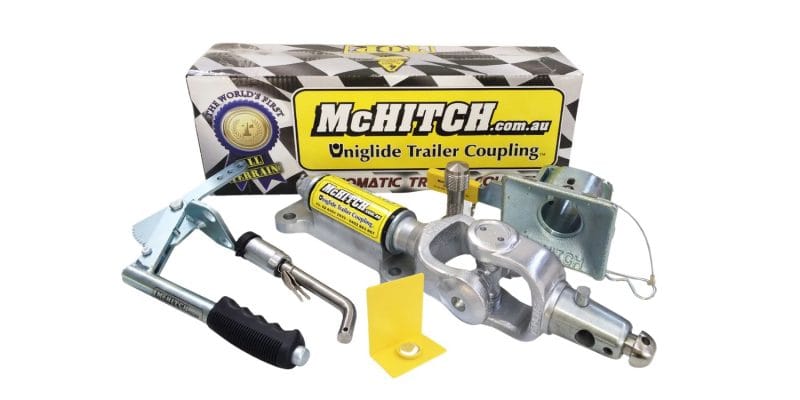

| McHitch Automatic | ~$450–650 | 3500kg+ | Automatic pin | McHitch pin |

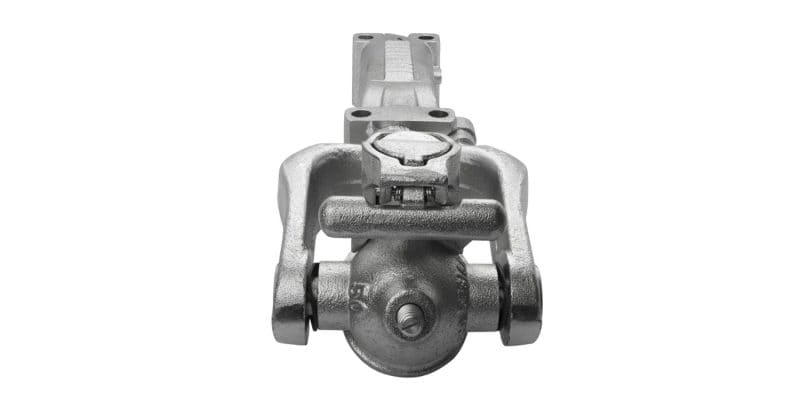

| AL-KO Off-Road Ball Value | ~$200–350 | 2.0–3.5T | Articulating ball | 50mm tow ball |
| Cruisemaster DO45 Plus | ~$700–900 | 4500kg | Pin / articulating | 70mm DO45 pin |
| Standard 50mm ball | ~$30–90 | 3500kg | Fixed ball | 50mm tow ball |
Ball Mounts
| Ball Mount | Price | Rating | Drop | Takes Coupling |
|---|---|---|---|---|
| Hayman Reese Adjustable Pick | ~$150–280 | 3500 / 4500kg | Up to 160mm | 50mm ball or DO35 pin |

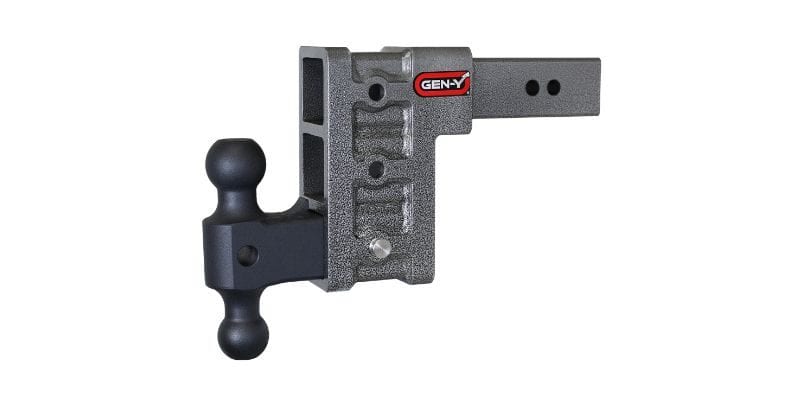

| GEN-Y Mega Duty | ~$450–650 | 4500kg | Adjustable | 50mm / 70mm ball, pintle |
| Black Jack Brutus | ~$300–450 | 4500kg | Up to 325mm | 70mm ball |
| Mister Hitches HD Value | ~$250–400 | 4000kg | Multi-stage | 50mm / 70mm ball |
The Verdict
For most big lappers heading off the blacktop, the combination to buy is a Cruisemaster DO35 V3 Plus on the van and a Hayman Reese adjustable ball mount (or a GEN-Y if you want the versatility) on the car, with the mount set up to take the DO35 pin. That setup handles corrugations, locks on safely, and lets you dial in a level tow whatever you’re driving.
If you hitch on your own a lot, the McHitch Automatic is worth the premium for the hands-free locking alone, just remember it needs its own pin on the mount. If your travels stick to sealed roads, you don’t need to upgrade the coupling at all, but if your tow vehicle is lifted, still grab an adjustable ball mount to get the van sitting level. And if you’re towing a heavy 4.5-tonne rig, step up to the DO45 Plus, a 70mm ball or pin, and a 4500kg-rated mount across the board.
Once your hitch set up is sorted, the next pieces of the safe-towing puzzle are checking your tow bar is up to the job, managing tow ball weight, and controlling sway.
- Your hitch set up is two parts: the coupling on the van and the ball mount on the car. Get both right and make sure they pair (ball with ball, pin with pin).
- Off-road big lappers: Cruisemaster DO35 V3 Plus is the coupling to buy.
- Hitching solo? The McHitch Automatic earns its keep.
- A Hayman Reese adjustable ball mount fits nearly everything and levels out a lifted tow vehicle.
- Match every component to your van’s ATM, and torque your mount bolts properly.
